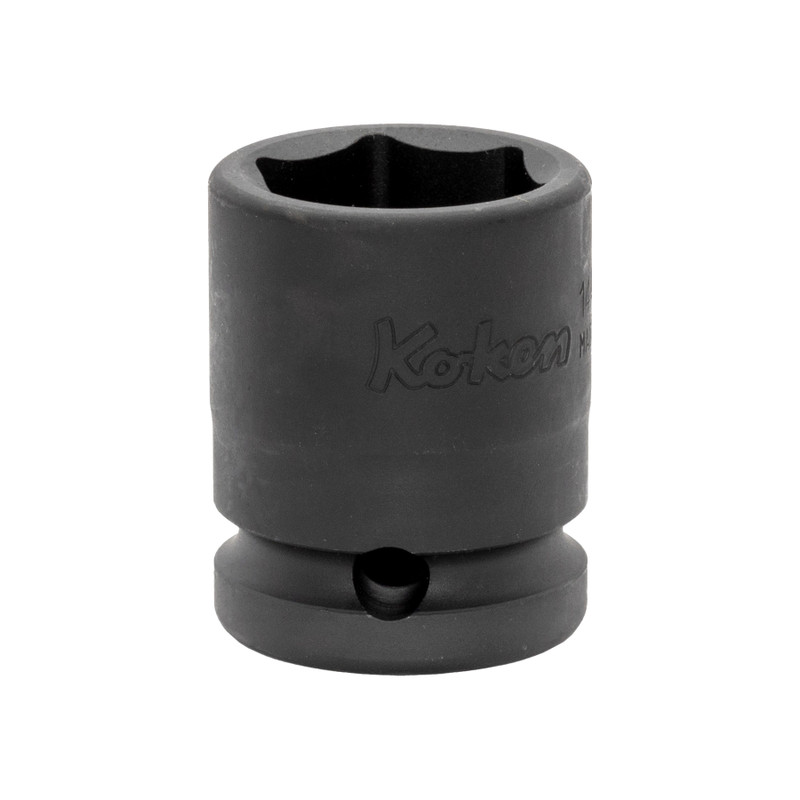

Ko-ken 1/2" Impact Sockets, 6-Point SAE (14400A)

Ko-ken 1/2" Impact Sockets, 6-Point SAE (14400A)

(No reviews yet) Write a Review

Description

Premium Made in Japan 1/2" 6-point SAE impact sockets.

1/2" square drive (12.7mm)
For SAE (inch) fasteners
Standard socket depth: 38-42mm
6-point Flat Drive™ – Guarantees a flat surface contact between the socket and the bolt/nut. The flat contact reduces wear and allows for higher torque transmission
Finish: Manganese Phosphate

Specifications

MPN		D₂mm	D₁mm	Hmm	Lmm	Weightg
14400A-3/8	3/8	17	25	7	38	85
14400A-7/16	7/16	18.2	25	8	38	85
14400A-1/2	1/2	20.7	25	10	38	85
14400A-9/16	9/16	22	25	10	38	85
14400A-19/32	19/32	23.2	30	11	38	130
14400A-5/8	5/8	24.5	30	11	38	130
14400A-11/16	11/16	25.7	30	12	38	130
14400A-3/4	3/4	28.2	30	13	38	125
14400A-13/16	13/16	30.7	30	14	38	120
14400A-7/8	7/8	32	30	14	38	130
14400A-15/16	15/16	34.5	30	14	38	135
14400A-1	1	35.7	30	14	38	135
14400A-1.1/16	1-1/16	38.2	30	16	40	160
14400A-1.1/8	1-1/8	40.7	30	17	42	190
14400A-1.3/16	1-3/16	42	30	17	42	190
14400A-1.1/4	1-1/4	44.5	30	18	42	216

Ko-ken 2400M Bit Socket Technical Drawing

SKU

–

Part Number

–

Barcode

–

Country of Origin

Japan

Socket Type

6-Point

Standard

SAE

Set

Individual
