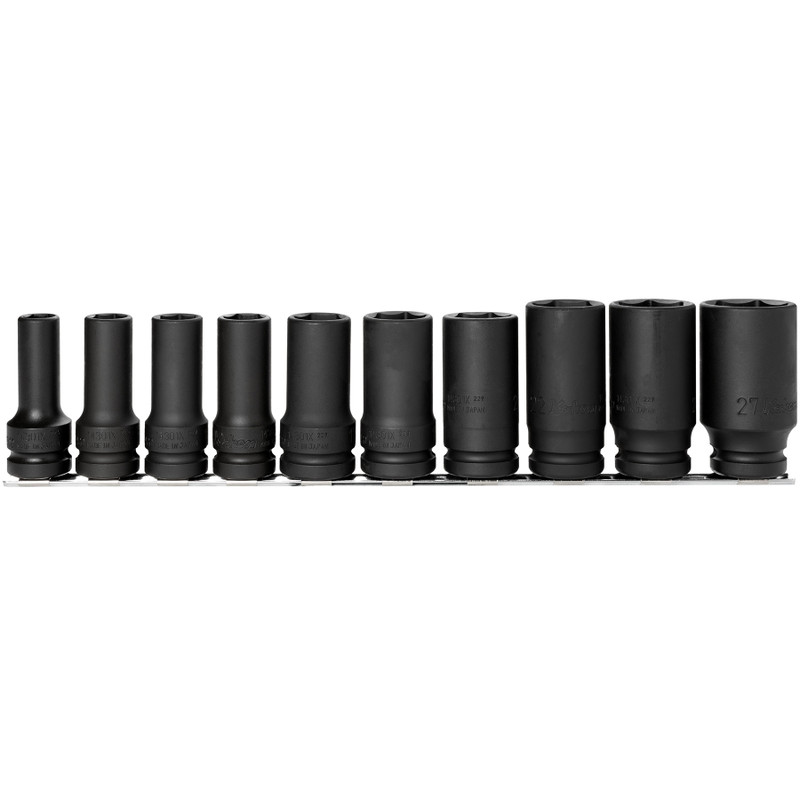

Ko-ken 1/2" Impact Socket Set, Thin Wall, 6-Point Semi-Deep, 10 pcs (RS14301X/10)

Ko-ken 1/2" Impact Socket Set, Thin Wall, 6-Point Semi-Deep, 10 pcs (RS14301X/10)

$179.35

Notify Me

In-stock, Ships within 24 hrs

Selection out of stock

Current Stock:

(No reviews yet) Write a Review

Description

Premium Made in Japan 1/2" thin wall semi-deep impact socket set.

1/2" square drive (12.7mm)
6 point sockets
Semi-deep length provides extended reach
Thin wall construction provides extra clearance
Includes (10 pcs): (14301X) 10 · 12 · 13 · 14 · 17 · 19 · 21 · 22 · 24 · 27 mm
Flat Drive™ – Guarantees a flat surface contact between the socket and the bolt/nut. The flat contact reduces wear and allows for higher torque transmission

Set Contents

MPN		D₂mm	D₁mm	Hmm	Lmm	Weightg
14301X-10	10	15.5	24	10	60	79
14301X-12	12	18	24	12	60	88
14301X-13	13	19.2	24	13	60	92
14301X-14	14	20.5	24	14	60	97
14301X-17	17	24.2	29	17	60	142
14301X-19	19	26.7	29	19	60	151
14301X-21	21	29.2	29	21	60	170
14301X-22	22	30.5	29	22	65	187
14301X-24	24	33	29	24	65	202
14301X-27	27	36.7	29	27	65	231

Ko-ken 2300M Socket Technical Drawing

SKU

KOK-01805-01000

Part Number

RS14301X/10

Barcode

4991644506569

Country of Origin

Japan

Standard

Metric

Socket Type

6-Point

Set

Set
