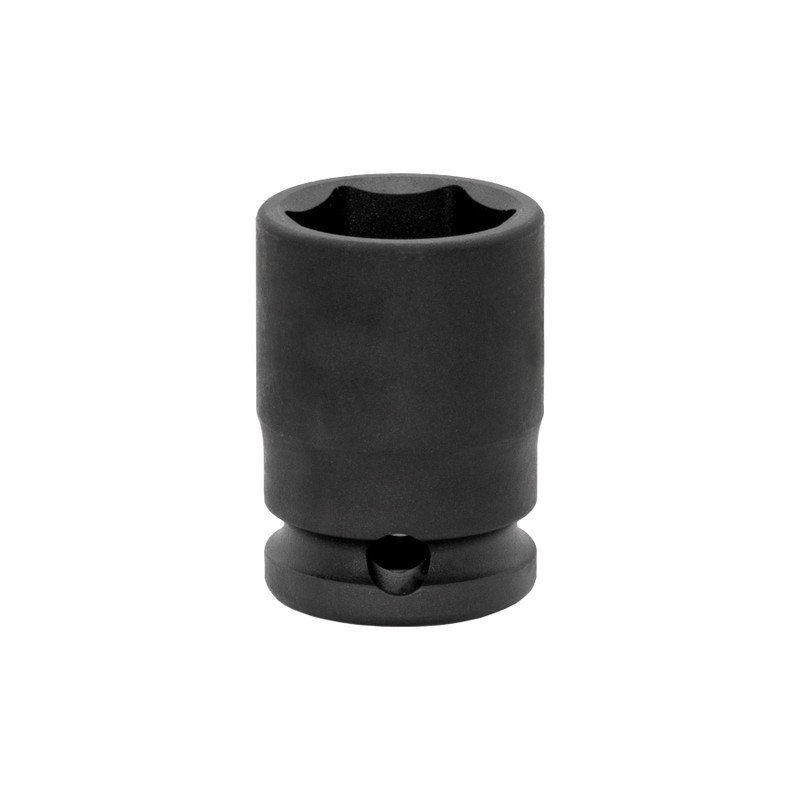

Ko-ken 3/8" Impact Sockets, 6-Point (13400M)

Ko-ken 3/8" Impact Sockets, 6-Point (13400M)

(No reviews yet) Write a Review

Description

Premium Made in Japan 3/8" 6-point impact sockets.

3/8" square drive (9.5mm)
Standard socket depth: 32mm
6-point Flat Drive™ – Guarantees a flat surface contact between the socket and the bolt/nut. The flat contact reduces wear and allows for higher torque transmission
Finish: Manganese Phosphate

Specifications

MPN		D₂mm	D₁mm	Hmm	Lmm	Weightg
13400M-8	8	13.3	19	6	32	40
13400M-9	9	14.5	19	7	32	40
13400M-10	10	15.8	19	7	32	40
13400M-11	11	17	19	8	32	41
13400M-12	12	18.3	19	9	32	43
13400M-13	13	19.5	22	10	32	56
13400M-14	14	20.8	22	10	32	56
13400M-15	15	22	22	11	32	56
13400M-16	16	23.3	22	11	32	57
13400M-17	17	24.5	22	12	32	60
13400M-18	18	25.8	22	12	32	62
13400M-19	19	27	22	12	32	67
13400M-20	20	28.3	22	12	32	70
13400M-21	21	29.5	22	12	32	71
13400M-22	22	30.8	22	13	32	72
13400M-23	23	32	22	13	32	75
13400M-24	24	33.3	22	13	32	78

Ko-ken 2400M Bit Socket Technical Drawing

SKU

–

Part Number

–

Barcode

–

Country of Origin

Japan

Socket Type

6-Point

Standard

Metric

Set

Individual
