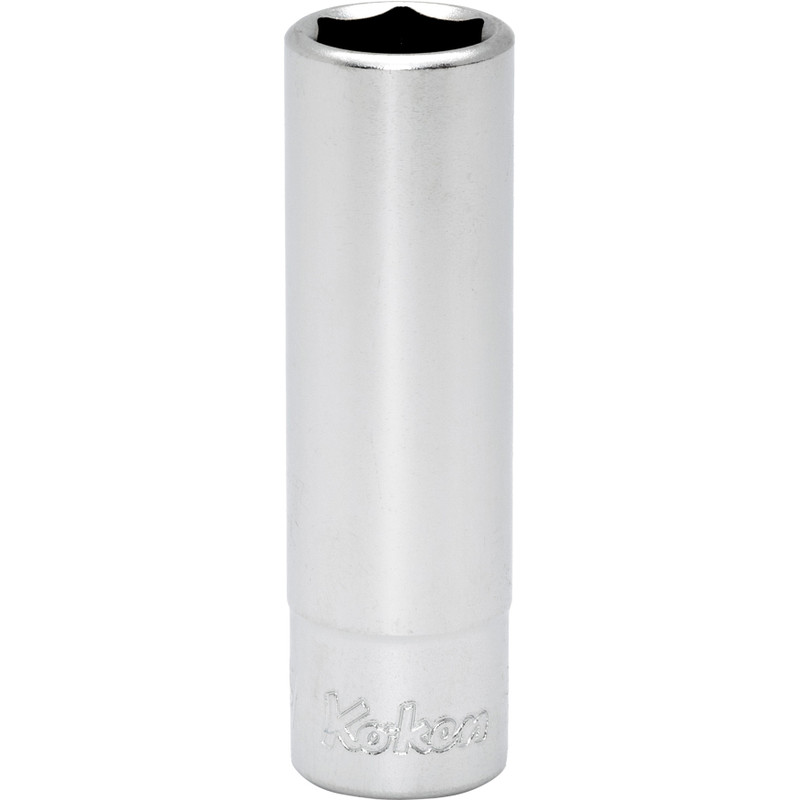

Ko-ken 1/2" Sockets, 6-Point Deep SAE (4300A)

Ko-ken 1/2" Sockets, 6-Point Deep SAE (4300A)

(No reviews yet) Write a Review

Description

Premium Made in Japan 1/2" 6-point deep SAE sockets.

1/2" (12.7mm) square drive
For SAE (inch) fasteners
Deep socket depth: 77mm long
6-point FLAT DRIVE® – Designed to guarantee a flat surface contact between the socket and bolt/nut to reduce wear and transmit a higher torque value
Fine tolerances provide a snug, precise fitment on fastener heads

Specifications

MPN		D₂mm	D₁mm	Hmm	Lmm	Weightg
4300A-3/8	3/8	14.6	21	10	77	82
4300A-7/16	7/16	16.5	21	12	77	86
4300A-1/2	1/2	19	21.8	14	77	106
4300A-9/16	9/16	20.3	21.8	15	77	115
4300A-5/8	5/8	22.8	22	17	77	141
4300A-11/16	11/16	25	24	19	77	149
4300A-3/4	3/4	26.5	25	20	77	165
4300A-13/16	13/16	29	27	23	77	190
4300A-7/8	7/8	30	28	27	77	200
4300A-15/16	15/16	32.8	30	27	77	249
4300A-1	1	35	32	27	77	279
4300A-1.1/16	1-1/16	36.5	33	28	77	303
4300A-1.1/8	1-1/8	37.8	34	28	77	331
4300A-1.3/16	1-3/16	40	36	34	77	342
4300A-1.1/4	1-1/4	42.8	38	34	77	405

Ko-ken 2300M Socket Technical Drawing

SKU

–

Part Number

–

Barcode

–

Country of Origin

Japan

Socket Type

6-Point

Standard

SAE

Set

Individual
