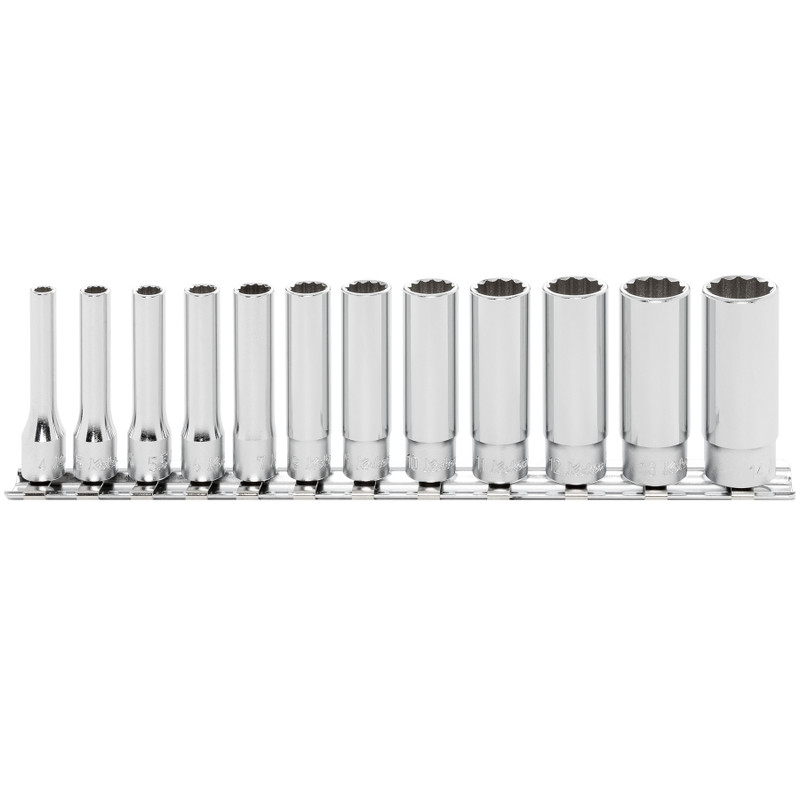

Ko-ken 1/4" Socket Set, 12-Point Deep, 12 pcs (RS2305M/12)

Ko-ken 1/4" Socket Set, 12-Point Deep, 12 pcs (RS2305M/12)
$88.90
Notify Me

In-stock, Ships within 24 hrs

Selection out of stock

Current Stock:
(No reviews yet) Write a Review
Description

Premium Made in Japan 1/4" 12-point deep socket set with convenient socket storage rail.

  • 1/4" (6.3mm) square drive
  • 12-point FLAT DRIVE® – Designed to guarantee a flat surface contact between the socket and bolt/nut to reduce wear and transmit a higher torque value
  • Deep socket length provides additional reach
  • Includes (12 pcs): (2305M) 4 · 5 · 5.5 · 6 · 7 · 8 · 9 · 10 · 11 · 12 · 13 · 14 mm
  • With socket storage rail (200mm)
  • Fine tolerances provide a snug, precise fitment on fastener heads
Set Contents
D2mm D1mm Lmm Hmm Weightg
2305M-4 4 6.3 11.2 50 40 15
2305M-5 5 8.0 11.2 50 40 17
2305M-5.5 5.5 8.5 11.2 50 40 17
2305M-6 6 9.2 11.2 50 40 20
2305M-7 7 10.3 11.2 50 40 25
2305M-8 8 11.2 11.7 50 40 25
2305M-9 9 13.0 12.0 50 40 30
2305M-10 10 14.3 12.9 50 39 34
2305M-11 11 15.5 14.3 50 39 43
2305M-12 12 16.8 15.5 50 39 50
2305M-13 13 18.0 16.4 50 39 52
2305M-14 14 19.3 17.9 50 38 57
Ko-ken 2300M Bit Socket Technical Drawing
SKU
KOK-00702-04500
Part Number
RS2305M/12
Barcode
4991644015573
Country of Origin
Japan
Standard
Metric
Socket Type
12-Point
Set
Set
