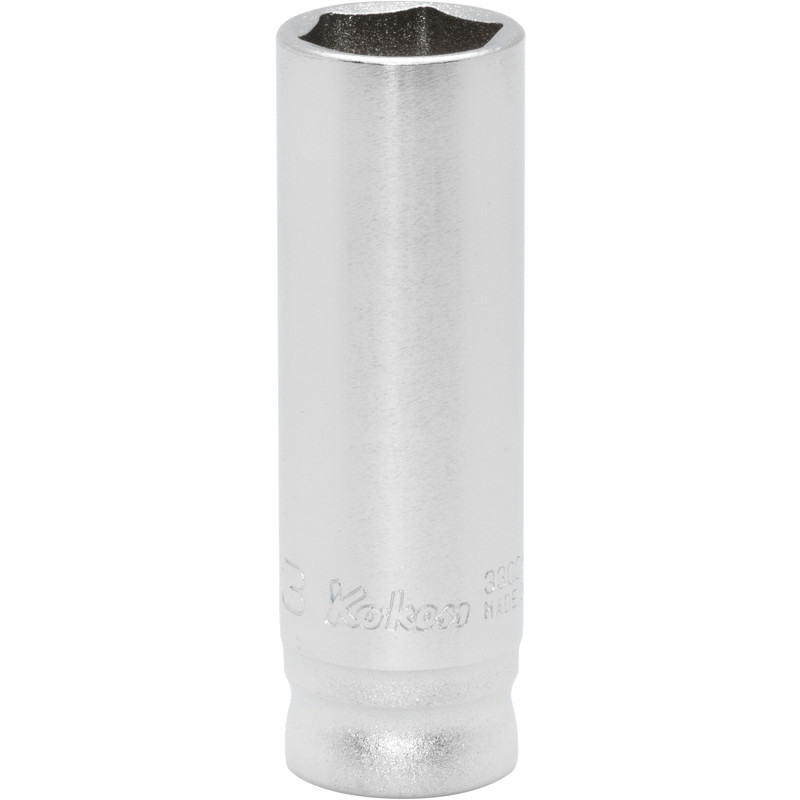

Ko-ken Z-Series 3/8" Sockets, 6-Point Deep (3300MZ)

Ko-ken Z-Series 3/8" Sockets, 6-Point Deep (3300MZ)
$10.85 - $13.85
Notify Me

In-stock, Ships within 24 hrs

Selection out of stock

Current Stock:
(No reviews yet) Write a Review
Description

Premium Made in Japan 3/8" Z-Series 6-point deep sockets.

  • 3/8" (9.5mm) square drive
  • Deep socket depth: 55mm long
  • 6-point FLAT DRIVE® – Designed to guarantee a flat surface contact between the socket and bolt/nut to reduce wear and transmit a higher torque value
  • Fine tolerances provide a snug, precise fitment on fastener heads
  • Z-Series (Z-EAL) – ultra-modern compact design for working in confined spaces
Specifications
MPN D2mm D1mm Hmm Lmm Weightg
3300MZ-7 7 10.3 17 8 55 29
3300MZ-8 8 11.5 17 9 55 34
3300MZ-10 10 14 17 11 55 43
3300MZ-11 11 15.3 17 12 55 45
3300MZ-12 12 16.5 17 12 55 49
3300MZ-13 13 17.8 17 14 55 52
3300MZ-14 14 19 17 14 55 56
3300MZ-15 15 20.2 18.2 16 55 65
3300MZ-16 16 21.3 19.3 17 55 74
3300MZ-17 17 22.5 20.5 18 55 83
3300MZ-18 18 23.6 21.6 19 55 90
3300MZ-19 19 24.8 22.8 20 55 95
Ko-ken 2300M Socket Technical Drawing
SKU
–
Part Number
–
Barcode
–
Country of Origin
Japan
Socket Type
6-Point
Series
Z-Series
Standard
Metric
Set
Individual
