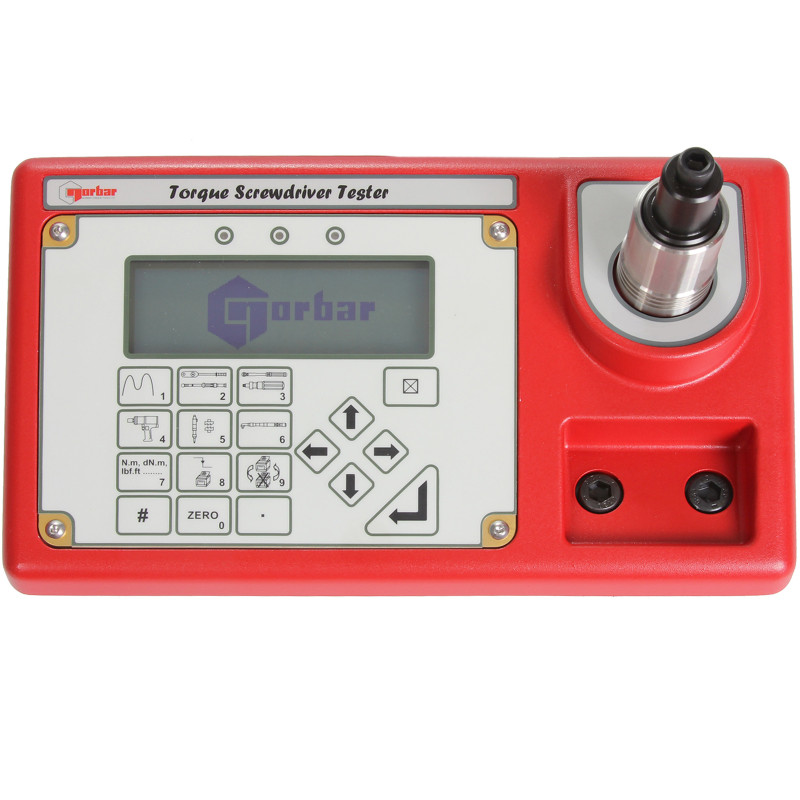

The TST is an advanced instrument for the testing and calibration of low capacity torque tools. Featuring an internal transducer complete with an included rundown fixture with a high degree of accuracy. True analog output and continuous RS 232 makes the instrument suitable for a wide range of process control and monitoring applications.
- Quickly confirm the accuracy of your torque tools
- Low, Pass and Fail indication
- Up to 8 target values can be set
- 13 selectable torque units
- Select from 11 languages
- Includes rundown fixture for testing of electric torque screwdrivers
- Pulse count feature in Impulse mode and Clutch Tool mode
- Integrated internal transducer
- 1 additional external transducer can be connected to expand measurement range
- "SMART" intelligence for transducer recognition
- Memory for calibration details of 20 non-"SMART" mV/V calibrated transducers
- User selectable frequency response for each mode of operation.
- All user selectable features have password protection – instrument can be issued to users with only the required modes of operation and units of measure enabled
- Operation from fast charge internal battery pack or AC power supply
- Ancillaries connector allows the instrument to be used as part of a process control system for example, shutting off a power tool at the desired torque
- Serial data port for connection to a printer or PC
- Continuous RS 232 output when used in track mode (up to 11 readings per sec.)
- Guaranteed classification to BS7882:2017, Class 1 or better over the primary calibration range (20% to 100% of full scale)
- Class 2 or better over the secondary calibration range (< 20% of scale)

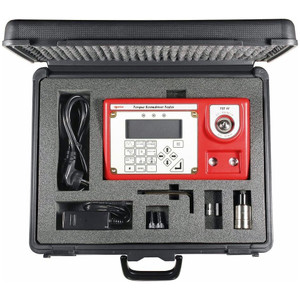

- Includes storage case with foam insert
