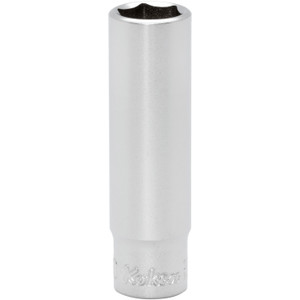

Ko-ken 1/4" Sockets, 6-Point Deep (2300M)

Ko-ken 1/4" Sockets, 6-Point Deep (2300M)

(No reviews yet) Write a Review

Description

Premium Made in Japan 1/4" 6-point deep sockets.

1/4" (6.3mm) square drive
Deep socket depth: 50mm long
6-point FLAT DRIVE® – Designed to guarantee a flat surface contact between the socket and bolt/nut to reduce wear and transmit a higher torque value
Fine tolerances provide a snug, precise fitment on fastener heads

"

Specifications

MPN		D₂mm	D₁mm	Hmm	Lmm	Weightg
2300M-4	4	6.7	11.2	4	50	15
2300M-4.5	4.5	7.3	11.2	4.5	50	15
2300M-5	5	8	11.2	5.5	50	17
2300M-5.5	5.5	8.5	11.2	6	50	17
2300M-6	6	9.2	11.2	7	50	20
2300M-7	7	10.5	11.2	8	50	25
2300M-8	8	11.8	11.2	9	50	25
2300M-9	9	13	12	10	50	30
2300M-10	10	14.3	12.9	11	50	34
2300M-11	11	15.5	14.3	12	50	43
2300M-12	12	16.8	15.5	13	50	50
2300M-13	13	18	16.4	14	50	52
2300M-14	14	19.3	17.9	16	50	57

Ko-ken 2300M Socket Technical Drawing

"

SKU

–

Part Number

–

Barcode

–

Country of Origin

Japan

Socket Type

6-Point

Standard

Metric
